CCTV lightning protection is a system of devices and techniques used to protect CCTV systems from damage caused by lightning strikes.
What is CCTV Lightning Protection?
CCTV Lightning Protection Systems typically include surge arresters, lightning rods, and grounding systems. Surge arresters are designed to divert excess voltage away from sensitive electronic components, while lightning rods are designed to attract lightning strikes and safely conduct them to the ground. Grounding systems provide a low-resistance path for electrical current to flow into the ground, further reducing the risk of damage to CCTV equipment.
CCTV Lightning Protection Process
Comprehensive guide to protecting your surveillance systems from lightning strikes and electrical surges
Why CCTV Lightning Protection is Critical
Lightning strikes can cause devastating damage to CCTV systems, resulting in costly repairs and security gaps. Proper CCTV lightning protection safeguards your investment and ensures continuous surveillance coverage, even during severe weather conditions.
How Lightning Strikes Affect CCTV Systems
How CCTV Lightning Protection Works

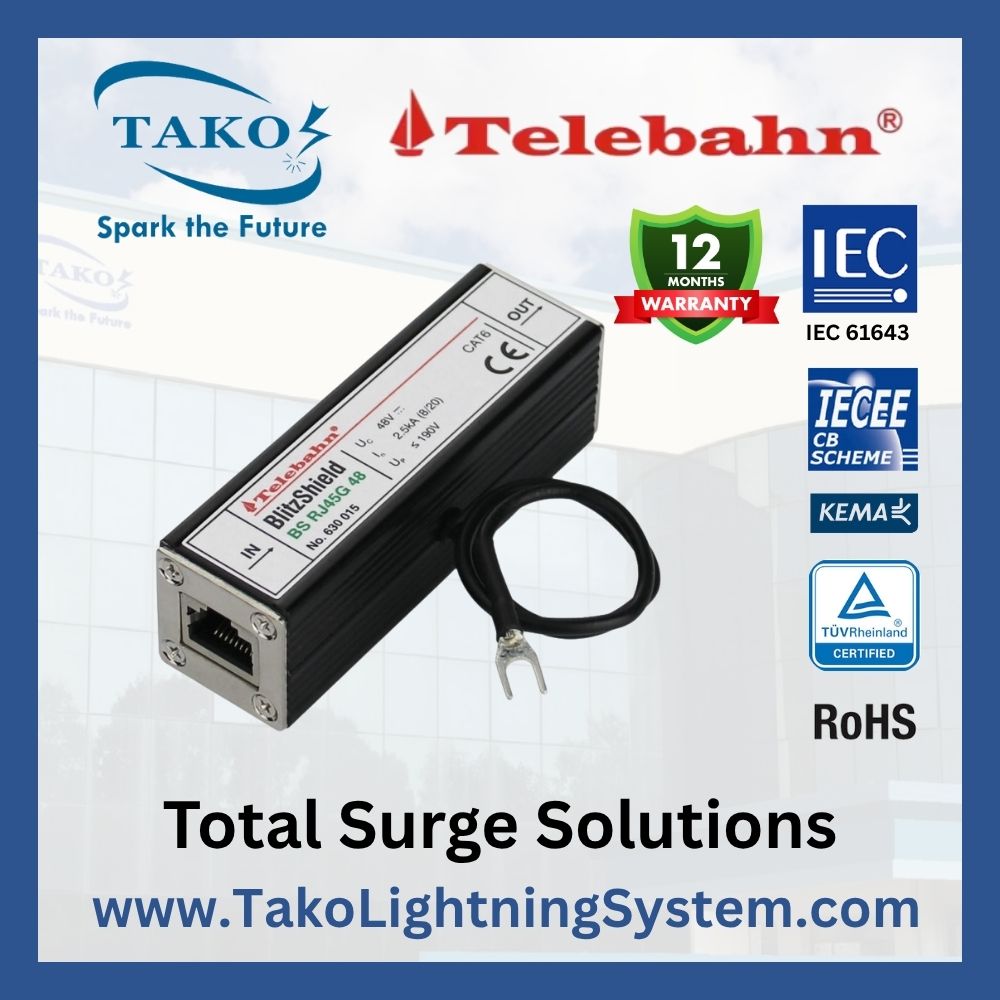

Telebahn SPD - Professional Grade Protection
For reliable CCTV lightning protection, TAKO is the sole distributor of Telebahn brand Surge Protection Devices (SPDs) in Malaysia, offering industry-leading protection for your surveillance systems.
Multi-Stage Protection
Advanced protection circuits handle various surge magnitudes
Fast Response Time
Nanosecond activation prevents equipment damage
High Surge Capacity
Handles extreme lightning surge currents effectively
Status Monitoring
LED indicators show real-time protection status
Types of CCTV Lightning Protection
Primary Protection
Lightning rods and air terminals that intercept direct strikes
Secondary Protection
Telebahn SPDs that handle induced voltages and surges
Equipment Protection
Individual device protection for cameras and DVRs
Network Protection
Data line protection for IP-based CCTV systems
Benefits of Proper CCTV Lightning Protection
Ready to Protect Your CCTV System?
Don't let lightning strikes compromise your security infrastructure. Contact TAKO today for professional CCTV lightning protection installation using premium Telebahn SPDs to safeguard your surveillance investment.
Contact TAKO via WhatsAppImportance of Lightning Protection for CCTV
Lightning strikes are powerful natural electrical discharges that can cause significant damage to electronic systems. CCTV cameras, often mounted on tall structures like poles or buildings, can act as lightning rods.
When lightning strikes, it seeks the path of least resistance to the ground, which can be the metal components of the CCTV system. This can result in:
Electrical Surges: Lightning can induce high-voltage surges in the electrical wiring and components of the CCTV system, damaging sensitive electronics.
Fire Hazards: The intense heat generated by a lightning strike (up to 50,000°C or 90,032°F) can cause fires, especially if the system is near combustible materials.
System Failure: The electrical damage can lead to complete failure of the CCTV system, interrupting surveillance and security measures.
Why / How does a CCTV / Security Camera Attract Lightning?
Security and surveillance cameras, particularly those mounted on tall metal poles, are prime targets for lightning strikes. This increased susceptibility can be attributed to several factors:
1. Height and Conductivity:
- Height: Cameras are often installed at elevated positions, making them taller than surrounding objects. Taller structures are more likely to be struck by lightning.
- Conductivity: Metal poles and the camera’s casing are excellent conductors of electricity. This conductivity enhances their ability to attract and conduct lightning strikes.
2. Grounding Potential:
- Improper Grounding: If the camera system is not properly grounded, it can create a potential difference between the camera and the ground. This potential difference can attract lightning strikes.
- Grounding Resistance: High grounding resistance can impede the flow of lightning current, increasing the risk of damage to the camera and its associated equipment.
3. Electrostatic Induction:
- Charge Accumulation: During a thunderstorm, the strong electric field between the ground and the storm cloud can induce charges on the camera and its supporting structure.
- Charge Discharge: As the charge on the structure increases, it can reach a critical level, leading to a lightning strike.
How to Mitigate the Lightning Risks for Security Cameras
To protect security cameras from lightning strikes, several measures can be implemented:
Lightning Protection Systems:
Surge Protection Devices (SPDs): These devices are installed on power and data lines to divert excess voltage away from sensitive electronic components.
Lightning Arresters: These devices are designed to intercept lightning strikes and safely conduct the current to the ground.
Proper Grounding:
- Ensure that the camera system is properly grounded to a low-resistance grounding system. This will help dissipate the energy of a lightning strike safely.
Lightning Rods:
- Installing a lightning rod near the camera system can attract lightning strikes away from the cameras and direct them safely to the ground.
By implementing these measures, it is possible to significantly reduce the risk of lightning damage to security cameras and ensure their continued operation during severe weather events.
Protect your valuable CCTV system from the devastating effects of lightning strikes with TAKO advanced lightning protection solutions. Lightning strikes are a powerful force of nature, causing billions of dollars in damage worldwide each year. In Malaysia alone, lightning strikes are responsible for numerous power outages, equipment damage, and even fatalities. During storms, your home’s CCTV system/surveillance cameras can be struck by lightning.
Lightning strikes naturally seek the shortest path to the ground. Metal objects, due to their excellent conductive properties, act as attractive targets for these powerful electrical currents. Tall metal poles often hold security cameras connected by long wires. This setup makes them perfect targets for lightning strikes.
Surge Protection Device for CCTV Camera
A surge protection device (SPD) is crucial for safeguarding your CCTV system from the damaging effects of lightning and power surges.
It acts as a shield, absorbing excess voltage and preventing it from reaching sensitive camera components.
Key benefits of using an SPD
Protects against lightning strikes: Diverts the surge away from your system.
Shields from power fluctuations: Prevents damage from unexpected voltage spikes.
Extends camera lifespan: Reduces the risk of premature component failure.
Ensures uninterrupted surveillance: Minimizes downtime caused by equipment damage.
TAKO: Your Trusted Partner for CCTV Lightning Protection
With 44 years of experience, TAKO is committed to top-notch CCTV lightning protection. We offer various solutions like lightning rods/air terminal systems, surge protectors, and grounding systems. They keep your security system safe, even in harsh weather. Trust TAKO for your protection needs.
Case Study: Protecting a Healthcare Facility's Security System from Lightning-Induced Transients
This case study examines the methods used to protect a healthcare facility’s security system from lightning-induced transients. The study draws upon sources provided, which highlight the importance of a robust lightning protection system (LPS) in ensuring the continuous operation of critical systems within a healthcare facility.
The Challenge
Healthcare facilities rely heavily on advanced technology, including security systems, for patient care, safety, and operational efficiency. These systems are vulnerable to damage from lightning-induced transients, which are sudden, short-duration bursts of energy that can occur on power and data lines during a lightning strike.
The Solution
A comprehensive approach to protecting a healthcare facility’s security system from lightning-induced transients involves the following key elements:
Equipotential Bonding: This fundamental principle of LPS involves bonding all conductive components of the facility together to create a common electrical potential. This minimizes the potential difference between different parts of the facility, reducing the likelihood of damaging currents flowing through sensitive equipment during a lightning strike. This includes bonding the security system components to the facility’s grounding system.
Surge Protective Devices (SPDs): SPDs are essential components of an LPS. These devices are designed to divert excess voltage and current away from sensitive equipment, effectively safeguarding them from transient surges. SPDs are deployed strategically throughout the facility in a staged approach, starting at the service entrance and cascading down to distribution points and finally to the point of use for individual equipment.
- AC Power SPDs: Installed on the AC power lines, these SPDs protect the security system’s power supply from transients. They are crucial for safeguarding devices like cameras, DVRs, and control panels.
- Ethernet SPDs: These SPDs protect the data communication lines used by the security system, ensuring the integrity of data transmission and preventing damage to communication interfaces.
Protecting Security Cameras: Security cameras, particularly those mounted outdoors, are especially susceptible to lightning strikes. They require both AC power and Ethernet SPDs to protect their power and communication circuitry. The sources recommend using SPDs with high surge current handling capabilities for outdoor cameras due to their higher exposure to lightning-induced transients.
Protecting DVRs: Digital Video Recorders (DVRs) are the heart of a security system, responsible for recording and storing video footage. These devices are commonly housed in rackmount enclosures, which provide a convenient and centralized location for installing SPDs. A rackmount SPD topology can protect the DVR, the environmental control system for the rack, and any associated Ethernet communication systems.
Shielded Ethernet Cables and Grounding: Utilizing shielded Ethernet cables further strengthens the security system’s resilience against transients. However, proper grounding of the shield is crucial to avoid ground loop currents, which can introduce noise and interference. The recommended practice is to connect the shield solidly to ground at the DVR (source) and isolate it from ground at the security camera (load). A high-frequency connection between the shield and ground at the camera, achieved through components like capacitors or GDTs, further mitigates the risk of ground loops.
Outcome
By implementing this multi-layered protection strategy, healthcare facilities can significantly reduce the risk of lightning-induced transients damaging their security systems. This ensures the security system remains operational even during severe weather events, contributing to the overall safety and security of the facility and its occupants.
Benefits of Choosing TAKO for CCTV Lightning Protection
When it comes to safeguarding your valuable CCTV system, choosing the right provider is critical. Here’s why TAKO stands out as your trusted partner in lightning protection:
When it comes to safeguarding your valuable CCTV system, choosing the right provider is critical. Here’s why TAKO stands out as your trusted partner in lightning protection:
1. Experience and Expertise
Since 1979, Tako has amassed over 44 years of experience in developing and implementing effective lightning protection solutions. Our deep knowledge helps us understand the problems CCTV systems have in lightning storms. This lets us create the best protection for you.
2. Quality Products
At Tako, we are unwavering in our commitment to quality. We carefully design and test every part of our CCTV system protection. This includes air terminal systems that redirect energy safely and surge protectors that soak up harmful voltage surges. We make sure your CCTVs are protected against lightning.
3. Professional Installation
Proper installation is crucial for the optimal performance of your lightning protection system. At Tako, we understand this vital aspect.
Our team comprises skilled, certified, and well-trained technicians. They understand lightning protection and CCTV system needs. They will carefully install your system according to the highest safety standards, ensuring complete protection for your investment.
4. Customer Service
We believe in building long-term relationships with our clients. At Tako, our commitment extends far beyond the initial installation. We offer exceptional customer service and support, available before, during, and after the installation process. Our team is always ready to answer your questions, address your concerns, and provide you with expert advice.
Is IP Camera Lightning Protection is as same as CCTV Lightning Protection?
Yes, IP camera lightning protection is essentially the same as CCTV lightning protection.
While the technology behind IP cameras and traditional CCTV cameras differs, the underlying principle of protecting them from lightning remains consistent. Both types of cameras are susceptible to damage from electrical surges caused by lightning strikes.
How to Protect CCTV Cameras from Lightning - Summary
Lightning strikes can cause significant damage to CCTV systems.
To safeguard your investment, follow these essential steps:
Grounding: Ensure proper grounding of your entire system, including cameras, cables, and power supplies.
Surge Protectors: Install high-quality surge protectors on both power and data lines to absorb excess voltage.
Lightning Arrestors: Consider additional protection with lightning arrestors specifically designed for CCTV systems.
Camera Placement: Mount cameras away from tall objects and metal structures to minimize the risk of direct strikes.
Regular Maintenance: Inspect your system regularly for signs of wear and tear, and replace damaged components promptly.
