Industrial Lightning Arrester Installations
& Grounding Projects in Selangor / KL
With 240–280 thunderstorm days recorded annually across the Klang Valley, Selangor and Kuala Lumpur are among the highest-lightning-risk industrial regions in Malaysia. Yet hundreds of factories, warehouses, and SME facilities across Shah Alam, Port Klang, Subang, Klang, Rawang, and Puchong still operate with outdated, non-compliant lightning protection — or none at all. This guide covers Industrial Lightning Arrester Installations and grounding projects across the Selangor/KL industrial corridor — what a Suruhanjaya Tenaga Approved Industrial Lightning Protection System requires, what it costs, and how Suruhanjaya Tenaga Approved Industrial Lightning Protection Provider TAKO delivers it — with over 25 years of certified expertise across every corner of Malaysia’s most industrially dense state.
What Is an Industrial Lightning Arrester Installation?
An Industrial Lightning Arrester Installation is the professional design and installation of an air termination system — either an ESE (Early Streamer Emission) lightning arrester or a conventional lightning rod network — on an industrial building or facility, combined with down conductors, equipotential bonding, and an earthing (grounding) system per MS IEC 62305-3.
In industrial contexts across Selangor and KL, this means protecting factory rooftops, warehouse structures, outdoor process equipment, tank farms, and critical electrical infrastructure from the direct lightning strikes that Malaysia’s 240–280 thunderstorm days per year deliver to the Klang Valley industrial corridor.
A complete Industrial Lightning Arrester Installation is not just the arrester itself — it is the entire system: air termination, down conductors, earthing network, equipotential bonding, and surge protection devices (SPDs) for internal equipment. TAKO has been delivering this complete solution as a Certified Total Lightning Protection System Service Provider since 1979, with over 25 years of specialised industrial expertise across Selangor and KL.
TAKO since 1979 is Malaysia’s Certified Total Lightning Protection System Service Provider with over 25 years of specialised experience — and the Sole Distributor of Telebahn Surge Protection Devices in Malaysia. Every Industrial Lightning Arrester Installation TAKO delivers in Selangor and KL is designed per MS IEC 62305, Suruhanjaya Tenaga compliant, professionally installed, tested to verified earth resistance targets, and fully certified. We do not supply and walk away — we take full responsibility for the system’s performance.
Why Selangor & KL Industrial Facilities Face Critical Lightning Risk
Selangor is not just Malaysia’s most industrially dense state — it is also among its highest-lightning-activity regions. The Klang Valley sits in a geographic bowl surrounded by hills and sea breezes that interact with intense solar heating to produce convective thunderstorms with extraordinary frequency. For factory managers and SME facility owners, this is not an abstract weather statistic — it is a daily operational reality during the March–May and October–December peak storm seasons.
| Industrial Zone | Thunderstorm Days/Yr | Typical Soil Condition | Earth Resistance Challenge | ST Compliance Urgency | TAKO Recommendation |
|---|---|---|---|---|---|
| Shah Alam Industrial Area (i-Park, Bukit Raja) | 260–280 | Laterite clay — moderate to high resistivity (150–400 Ω·m) | Medium-High — bentonite enhancement usually required | ✓ Critical | ESE arrester + copper-bonded rod array + Telebahn SPD |
| Port Klang & Klang Free Zone | 240–265 | Coastal alluvial & marine clay — moderate resistivity | Medium — salt-air demands corrosion-rated materials | ✓ Critical | Stainless-copper earth rods + coastal-rated ESE arrester |
| Subang & USJ Industrial Areas | 255–280 | Mixed alluvial and laterite — variable resistivity | Medium — site-specific soil testing essential | ✓ Critical | Risk assessment first — then tailored LPS design per site |
| Rawang & Sg. Buloh Industrial Park | 265–280 | Upland laterite — higher resistivity (200–600 Ω·m) | High — multiple rods + coke breeze/bentonite typically required | ✓ Critical | Deep-driven copper rod array + soil enhancement |
| Kapar & Meru Industrial Zones | 255–275 | Coastal-influenced mixed soils | Medium — copper-bonded rods + annual re-testing | ✓ High | Standard copper earth rod installation + Telebahn SPD |
| Puchong & Kinrara Industrial | 260–280 | Laterite — moderate to high resistivity | Medium-High — equipment-heavy SMEs need Part 4 SPD | ✓ Critical | Complete LPS + full Telebahn SPD coordination |
| KL City & Surrounding High-Rise | 265–280 | Engineered fill and basement construction | Requires foundation electrode integration at construction stage | ✓ Critical | Foundation electrode + mesh system + full MS IEC 62305 design |
| Sepang & KLIA Aeropolis Zone | 260–275 | Flat coastal-influenced soils — variable | Medium — aviation-zone compliance adds ICAO requirements | ✓ Critical | Complete Total LPS with Thunderstorm Warning System |
| Source: TAKO site assessment data from Selangor/KL industrial projects. Thunderstorm day data based on Malaysian Meteorological Department records. Soil resistivity values are indicative — professional Wenner testing required for each site. | |||||
What this table makes clear is that even within Selangor’s relatively compact industrial corridor, soil conditions vary significantly from Port Klang’s coastal alluvial soils to Rawang’s upland laterite — directly affecting how many copper earth rods your grounding system needs and what enhancement materials are required to achieve the below-10-Ohm target mandated by Malaysia’s lightning protection standard. This is why a site-specific assessment — not a generic online quote — is the only responsible starting point for any Selangor or KL industrial grounding project.
Suruhanjaya Tenaga Approved Industrial Lightning Protection System — What Selangor Facilities Need
Since Arahan/ST/No.4/2019 came into force, every industrial facility in Selangor and KL — from a 500 m² SME factory in Puchong to a 50,000 m² automotive plant in Shah Alam — is legally required to have a Suruhanjaya Tenaga Approved Industrial Lightning Protection System designed, installed, and maintained per MS IEC 62305. This is not a recommendation. It is a binding directive with legal consequences under the Electricity Supply Act 1990.
What a Suruhanjaya Tenaga Approved Industrial Lightning Protection System must include for Selangor/KL facilities:
- MS IEC 62305-2 Lightning Risk Assessment — conducted by a competent person using local Ng data for your specific Selangor/KL location, building dimensions, occupancy, and consequences. Mandatory before any LPS design begins. Determines your required Lightning Protection Level (LPL I–IV)
- MS IEC 62305-3 External LPS — professional design and installation of air termination (ESE arrester or conventional rods), down conductors per the standard, equipotential bonding of all metal structures, and earthing system achieving below-10-Ohm earth resistance
- MS IEC 62305-4 Internal Protection (SPD) — IEC 61643 Compliant Surge Protection Devices on power, data, and telecom lines. This is the most commonly non-compliant element in Selangor industrial facilities — many have an external LPS but no coordinated SPD protection for their PLCs, SCADA, and VFDs
- Full Documentation — risk assessment report, as-built drawings, earth resistance test certificate, SPD installation records, maintenance schedule
- Ongoing Maintenance — annual inspection and re-testing per MS IEC 62305-3 Section 7
⚠ For Selangor/KL Facility Managers: If your facility has a lightning rod installed but no documented MS IEC 62305-2 risk assessment — your system is not Suruhanjaya Tenaga Approved under the current mandatory Arahan. The risk assessment is legally required regardless of whether physical hardware exists. Read more at Is Lightning Protection Mandatory in Malaysia?

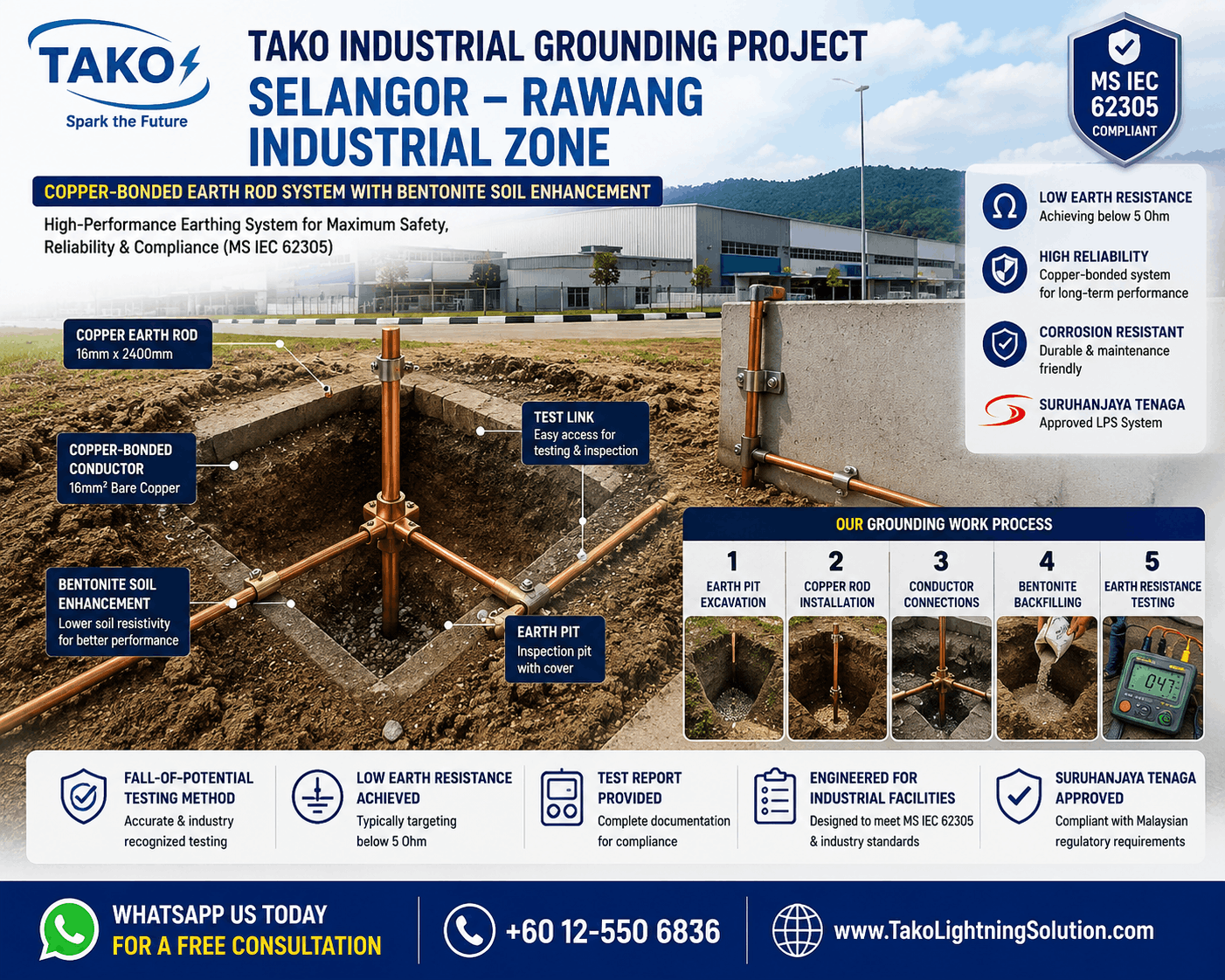

Industrial Grounding Projects in Selangor — Earthing System Types & Standards
Grounding is the most technically demanding element of any Industrial Lightning Arrester Installation in Selangor. Malaysia’s soil conditions — ranging from Port Klang’s low-resistivity coastal clay to Rawang’s high-resistivity upland laterite — mean that a single approach does not work across the Klang Valley. TAKO’s grounding projects are designed from site-specific soil resistivity data, achieving and maintaining compliant earth resistance targets across all Selangor and KL industrial soil types. Explore the complete methodology at Understanding the Earthing System in Malaysia.
| Earthing Type | Purpose | Electrode Configuration | Selangor Application | Target Earth Resistance |
|---|---|---|---|---|
| System Earthing | Safety in normal operation — prevents static buildup and protects against lightning/switching surges. Equipotential bonding to keep all metal at same potential | Ring earthing conductor with driven copper-bonded rods at corners | All industrial facilities — mandatory per ST Earthing Standard | <10 Ω (MS IEC 62305-3) |
| Equipment Earthing | Fault protection — prevents equipment damage and electric shock. Enables rapid fault detection and disconnection via circuit breakers and RCDs | Individual equipment earth conductors bonded to main earth bar (MEB) | Factories with heavy machinery — automotive Shah Alam, manufacturing Klang | <5 Ω for industrial power systems |
| Functional Earthing | EMI filtering for control systems. Return path for instrumentation and fieldbus networks. Suppresses electromagnetic interference | Star-point earthing for PLC/SCADA — isolated from power system earth | Electronics/semiconductor facilities (Subang, USJ). Process control (Rawang) | <1 Ω for sensitive electronic systems |
| Foundation Electrode | Structural lightning protection earthing integrated into building concrete foundation. Most reliable long-term earthing for large industrial buildings | Copper mesh or bare copper conductor embedded in reinforced concrete foundation | New construction — high-rise industrial at KL City fringe. KLIA Aeropolis Zone | <5 Ω — enhanced by large surface area |
| Soil-Enhanced Rod Array | Multiple parallel copper earth rods with bentonite or coke breeze backfill — used where soil resistivity prevents single-rod compliance | 2–8 copper-bonded steel rods (14.2–16mm × 1.5–3m) at 3–6m spacing with enhancement compound | Rawang, Sg. Buloh upland — high-resistivity laterite. Inland Shah Alam industrial parks | <10 Ω achieved through parallel array |
| Earth resistance values per MS IEC 62305-3:2007 and Suruhanjaya Tenaga Earthing Standard. All TAKO grounding projects include professional Wenner four-pin soil resistivity testing and fall-of-potential earth resistance measurement. Full details at Advanced Rod Earthing Installation. | ||||
ESE Lightning Arrester vs Conventional Lightning Rod — Which Is Right for Your Selangor Factory?
One of the most common questions TAKO receives from Selangor industrial facility managers is which air termination technology — ESE lightning arrester or conventional lightning rod — is right for their specific building. The answer depends on the facility’s roof size, structural complexity, budget, and the protection level (LPL) determined by the risk assessment. Here is how the two technologies compare for typical Selangor industrial applications.
| Comparison Factor | ESE Lightning Arrester | Conventional Lightning Rod | TAKO Recommendation |
|---|---|---|---|
| Technology Type | Active — Early Streamer Emission ionisation before lightning arrives | Passive — rod intercepts lightning when it arrives at tip | ESE for large facilities; rod for smaller structures |
| Protection Zone | 40–45% wider than conventional rod at same height | Cone-shaped zone — 45–60° angle from rod tip | ESE for factories >3,000 m² roof area |
| Number of Units (5,000 m² factory) | 2–4 ESE units typically sufficient | 8–15 conventional rods required | ESE — fewer penetrations through roof waterproofing |
| Unit Cost (Supply) | RM 3,000–RM 12,000 per unit | RM 800–RM 1,500 per rod | ESE total system cost often lower for large roofs |
| Total System Cost — Medium Factory | RM 18,000–RM 40,000 (supply + install + earth) | RM 22,000–RM 55,000 (more units + more conductors) | Site-specific — free assessment determines best option |
| MS IEC 62305 Compliance | ✓ Fully compliant | ✓ Fully compliant | Both technologies are compliant — selection based on site |
| Maintenance Requirement | Annual functional test of ioniser circuit | Annual visual inspection — minimal | Conventional rod — slightly lower ongoing maintenance |
| Best Selangor Application | Large warehouses (Port Klang, Shah Alam), automotive plants, logistics parks | SME factories, smaller processing plants, mid-sized industrial buildings | TAKO assesses and recommends — never one-size-fits-all |
| Prices are indicative for Selangor/KL installations as of 2025. Total project cost includes soil resistivity testing, installation labour, conductor routing, earthing system, SPD integration, and commissioning. WhatsApp TAKO for a site-specific quotation. | |||
TAKO’s Industrial Lightning Arrester Installation Process — Selangor / KL
Every Industrial Lightning Arrester Installation TAKO delivers in Selangor and KL follows the same structured six-step process — ensuring the system is designed correctly for your specific site, installed professionally, tested to verified performance targets, and documented for full Suruhanjaya Tenaga Approved Industrial Lightning Protection System status.
Free Expert Site Visit — Selangor / KL
TAKO visits your facility anywhere in Selangor or KL at no charge. We assess your existing LPS (if any), review documentation, check for compliance gaps against Arahan/ST/No.4/2019, and identify the preliminary scope of any Industrial Lightning Arrester Installation or grounding upgrade required.
Soil Resistivity Testing & MS IEC 62305-2 Risk Assessment
Professional Wenner four-pin soil resistivity measurement at your specific Selangor or KL location. Combined with the MS IEC 62305-2 lightning risk assessment using local Ng data — this step determines exactly how many earth rods you need, what depth is required, and which LPL class your system must achieve.
Complete LPS Design — Arrester, Conductors, Earthing
TAKO designs the complete system — ESE lightning arrester or conventional rod positioning, down conductor routing, equipotential bonding schedule, copper earth rod array configuration, and SPD selection per MS IEC 62305. Formal design drawings produced and submitted for your review before installation begins.
Professional Installation Under PTW & Safety Protocols
All installation work in Selangor and KL industrial facilities is carried out by TAKO’s trained engineers — not subcontracted. Work is performed under your facility’s Permit-to-Work system with full safety documentation. Roof penetrations are properly sealed. Conductor routing minimises disruption to operations.
Earth Resistance Testing & SPD Commissioning
Fall-of-potential earth resistance measurement to verify below-10-Ohm target achieved. Telebahn SPD installation tested and verified. ESE arrester or rod continuity confirmed. All results documented in formal test certificates.
Suruhanjaya Tenaga Compliance Handover & Annual Maintenance
Complete documentation package handed over — risk assessment report, as-built drawings, earth resistance certificate, SPD records, maintenance schedule. All documents formatted for Suruhanjaya Tenaga inspection. TAKO provides annual testing and certification to maintain ongoing ST compliance.
Selangor & KL Industrial Zones — TAKO’s Coverage
TAKO has delivered Industrial Lightning Arrester Installations and grounding projects across every major industrial area in Selangor and Kuala Lumpur — from Port Klang’s marine terminal facilities to Rawang’s heavy manufacturing plants. Here is where TAKO works and what specific challenges each zone presents for industrial LPS and grounding design.
TAKO also serves industrial facilities in Johor Bahru and surrounding areas — see our Lightning Protection System in Johor Bahru guide for regional context, and our full service offering at the TAKO Sistem Perlindungan Kilat page.
Why Selangor & KL Industrial Facilities Choose TAKO
There is no shortage of lightning protection contractors operating in Selangor and KL. But there is a significant shortage of contractors who take full professional responsibility for a complete, documented, Suruhanjaya Tenaga Approved Industrial Lightning Protection System — from risk assessment through to ongoing annual maintenance. That distinction is what drives Selangor and KL industrial facilities to choose TAKO.
- TAKO since 1979 — 45 years in Malaysia, 25+ years specialised industrial expertise: We have been doing this since long before MS IEC 62305 became mandatory. Our engineers know the specific soil conditions, building types, and operational constraints of every major Selangor and KL industrial zone from hands-on project experience
- Sole Distributor of Telebahn SPD in Malaysia — Part 4 compliance from one source: MS IEC 62305-4 internal protection is the element most commonly missing from industrial LPS in Selangor. As the Sole Distributor of Telebahn Surge Protection Devices, TAKO delivers complete Part 4 compliance — protecting PLCs, SCADA, VFDs, and network hardware that a lightning rod alone cannot safeguard
- Covers all Selangor/KL industrial zones — no subcontracting: TAKO’s own engineers visit, assess, install, and certify. We operate across every zone in the table above — Shah Alam, Port Klang, Subang, Rawang, Puchong, Kapar, Sepang, and KL — without passing work to third parties who do not share our quality standards
- Correct specification for Selangor’s varied soils: From Port Klang’s coastal alluvial clay to Rawang’s high-resistivity upland laterite, TAKO specifies the right earth rod type, depth, quantity, and enhancement compound for each location. One-size-fits-all earthing specifications are how non-compliant systems get built — TAKO has never worked that way
- Full ST compliance documentation: Every project delivers risk assessment reports, as-built drawings, earth resistance test certificates, SPD installation records, and maintenance schedules formatted for Suruhanjaya Tenaga inspection and DOSH audit. Our clients always have the documentation they need when it is asked for
- Annual maintenance programme — keeping you compliant year on year: Arahan/ST/No.4/2019 requires ongoing maintenance, not just a one-time installation. TAKO’s annual maintenance programme covers earth resistance re-testing, ESE functional verification, conductor inspection, and updated compliance documentation — for the life of your facility
Find TAKO on Google Maps to see our Selangor and KL project reviews from industrial clients. Our track record across the Klang Valley speaks for itself. Contact TAKO to discuss your facility’s specific requirements.
Industrial Lightning Arrester Installations Selangor/KL — FAQ
What is an Industrial Lightning Arrester Installation and why do Selangor factories need one?
Is a Suruhanjaya Tenaga Approved Lightning Protection System mandatory for my Selangor factory?
How much does an Industrial Lightning Arrester Installation cost in Selangor?
How does TAKO’s earthing system differ across Selangor industrial zones?
Why choose TAKO for Industrial Lightning Arrester Installations in Selangor and KL?
