You’ve made a smart investment. Whether it’s the roof of your family home or the vast expanse of an industrial warehouse, those glistening solar panels represent a commitment to sustainability, energy independence, and significant cost savings. You’ve thought about efficiency, battery storage, and ROI. But have you considered the invisible threat that could wipe out that investment in a microsecond?

Electrical surges—from a distant lightning strike, a grid malfunction, or even internal switching—can send a violent wave of excess electricity through your entire system. The result? Catastrophic failure. The most vulnerable and expensive component, your inverter, can be fried in an instant. This is not a rare “what-if” scenario; it’s a constant risk.

This is precisely why a professional Solar SPD installation is not an optional extra but a fundamental pillar of a robust solar power system. It is the silent, vigilant guardian that stands between your valuable equipment and the chaotic forces of nature and the grid. This comprehensive guide will demystify the process, explain the critical technical details, and underscore why a correct Solar SPD installation is your best defense, ensuring peace of mind for years to come.

WHATSAPP NOW FOR TOTAL LPS SOLUTIONS & GET A FREE SITE VISIT WORTH RM380

Section 1: What is a Solar SPD? The Non-Negotiable Guardian

Let’s start with the basics. SPD stands for Surge Protective Device. In the context of a solar array, a Solar SPD is a specialized component designed to safely divert excess voltage from a power surge to the ground, thereby protecting your sensitive and expensive electronic equipment.

Think of it as a highly sophisticated pressure relief valve in a plumbing system. Under normal operating conditions, it stays closed, allowing electricity to flow unimpeded. But when a surge—a massive spike in voltage—occurs, the SPD “opens” instantly, channeling the dangerous excess away from your equipment and into the grounding system. Once the surge passes, it resets, ready for the next event.

Why Your System is Uniquely Vulnerable

Solar systems are particularly susceptible to surges for two key reasons:

Large Surface Area: A solar array, by its very nature, covers a large area, often in an exposed location (e.g., a roof or open field). This makes it a prime target for induced voltages from nearby lightning strikes. The strike doesn’t have to be direct; even one within a mile can induce a powerful surge in the DC wiring.
Sensitive Electronics: Modern inverters are the brains of the operation, filled with sophisticated microprocessors and transistors. These components operate on low voltages and are extremely sensitive to voltage spikes. A surge that might only dim the lights in your home can be fatal to an inverter.

The cost of forgoing a Solar SPD installation is staggering. For a homeowner, a failed inverter means a bill of $2,000 to $10,000+. For an industrial facility, where multiple large-scale central inverters are used, the cost can run into hundreds of thousands of dollars, not to mention the catastrophic production downtime. A proper Solar SPD installation is the single most cost-effective insurance policy you can buy for your system.

Section 2: Before You Begin: Key Considerations for Your SPD Installation

A successful Solar SPD installation begins long before any wires are connected. Selecting the right device is paramount. Using an incorrect or substandard SPD is almost as bad as having none at all.

Understanding the Types of Solar SPDs

SPDs are categorized into types based on their withstand capability and installation location.

Type 1 (Class I): These are heavy-duty SPDs designed to handle very high-energy surges, such as those from a direct or very close lightning strike. They are typically installed at the main service entrance or, in a solar context, at the point where DC power from the array enters the building. For large industrial solar farms or facilities in lightning-prone areas, a Type 1 Solar SPD installation is often mandated by code.
Type 2 (Class II): This is the workhorse for most residential and many commercial systems. Type 2 SPDs protect against induced surges from external events and switching transients from within the electrical grid. They are installed at sub-panels or directly at the inverter. A comprehensive whole-system protection plan often involves a coordinated Solar SPD installation incorporating both Type 1 and Type 2 devices.
Type 3 (Class III): These are point-of-use devices with lower discharge capacities. They are sometimes used for additional protection very close to a specific, highly sensitive device but are not a substitute for a primary Type 1 or 2 Solar SPD installation.

Decoding Critical SPD Specifications

When selecting a device for your Solar SPD installation, you must understand its ratings:

Maximum Continuous Operating Voltage (Uc): This must be higher than the maximum system voltage. For a residential system, this might be 600VDC, while for a large industrial system, it could be 1000VDC or 1500VDC. Choosing a Uc that is too low will destroy the SPD during normal operation.
Voltage Protection Level (Up): This is the maximum voltage that will be let through to the protected equipment. A lower Up means better protection. Look for a Up of less than 1.5 kV for sensitive electronics. The goal of a quality Solar SPD installation is to keep the Up as low as possible.
Short-Circuit Current Rating (SCCR): The SPD must be able to withstand the available fault current from your system and the grid without creating a dangerous failure.
Impulse Current (Iimp) & Nominal Discharge Current (In): Iimp is for Type 1 SPDs (resistance to direct lightning currents), while In is for Type 2 SPDs (resistance to induced surges). Higher values indicate a more robust device.

The Importance of Compliance and Standards

Never compromise on quality. Your Solar SPD installation must use devices that are independently tested and certified to recognized standards. In North America, look for UL 1449 4th Edition listing. Internationally, IEC 61643-31 is the key standard for solar surge protectors. Using certified products is a non-negotiable part of a trustworthy and safe Solar SPD installation.

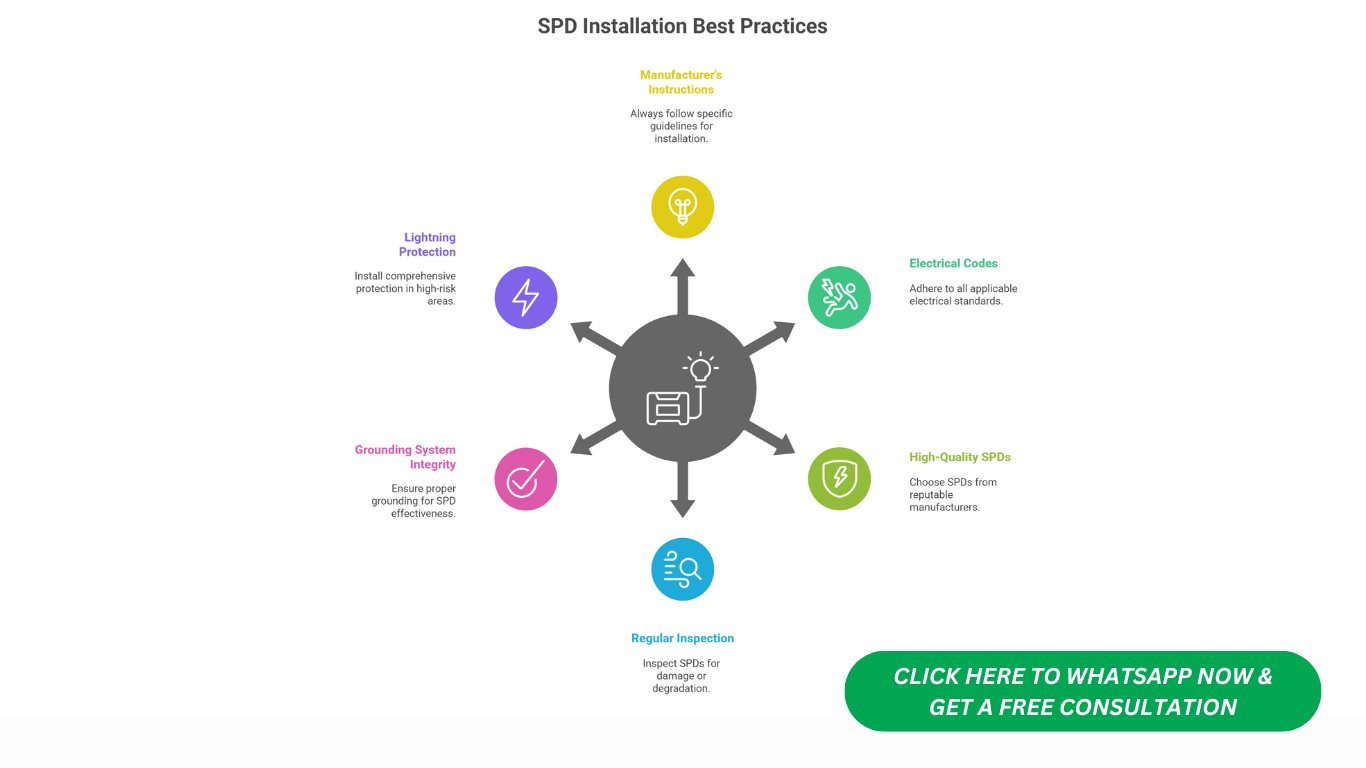

Section 3: A Step-by-Step Guide to the Solar SPD Installation Process

This section provides a detailed overview of the professional process for a Solar SPD installation. It is intended to educate you on what a certified installer will do, ensuring you can hold them to the highest standards.

CRITICAL SAFETY DISCLAIMER: The following steps describe a professional procedure. Working with live DC solar circuits and AC panels carries an EXTREME RISK of severe electric shock, arc flash explosions, and fire. DC from solar panels is always present when the sun is shining and cannot be turned off with a simple switch. A proper Solar SPD installation MUST be performed by a licensed and certified electrician or solar installer. Do not attempt this yourself.

Step 1: Comprehensive System Shutdown & Safety Lockout (LOTO)
The first and most critical step is to de-energize the entire system completely. This involves:

Shutting down the AC side at the main utility disconnect.
Shutting down the inverter according to the manufacturer’s instructions.
The DC side is the most dangerous. A professional will use voltage-rated gloves and tools to open the DC combiner box and disconnect the strings. They will then use a multimeter to verify that there is zero voltage present on all DC and AC terminals. Lock Out, Tag Out (LOTO) procedures are followed religiously to prevent accidental re-energization.

Step 2: Strategic Location Selection
The installer will determine the optimal points for the Solar SPD installation. For complete protection, SPDs are needed on both the DC and AC sides.

DC Side: Typically installed inside the main DC combiner box. For large industrial systems, there may be SPDs at the combiner box and again at the inverter input.
AC Side: Installed in the main AC distribution panel or a sub-panel near the inverter.

Step 3: Secure Mounting
The SPD is securely mounted inside the chosen enclosure using the provided hardware. It must be mounted in a location that allows for proper wiring and future visual inspection.

Step 4: Precision Wiring Connection
This is the core of the Solar SPD installation.

For a DC SPD: The DC+ and DC- wires from the SPD are connected to the corresponding main DC+ and DC- busbars or terminals within the combiner box.
For an AC SPD: The Line, Neutral, and Ground wires are connected to the corresponding busbars in the AC panel.
All connections are torqued to the manufacturer’s specifications. Loose connections are a primary cause of failure and fire.

Step 5: The Critical Grounding Connection
This is arguably the most important part of the entire Solar SPD installation. The SPD’s grounding wire must be connected to a low-impedance, solid grounding electrode system. The grounding conductor is often required to be as short and straight as possible to minimize impedance. A poor ground connection renders the SPD completely useless, as it has no path to divert the surge energy.

Step 6: Connecting Remote Monitoring (if applicable)
Many modern SPDs come with a remote monitoring terminal that can be wired to a central alarm system or the inverter itself. This provides a signal if the SPD fails and needs replacement, a key feature for a maintenance-free Solar SPD installation.

Step 7: System Re-energization & Functional Testing
Once the Solar SPD installation is complete and all connections are double-checked, the system is carefully re-energized in the reverse order of shutdown. The installer will verify that the SPD’s status indicator (usually a green LED) is illuminated, confirming it is active and protecting the system.

Section 4: Post-Installation: Maintenance and Monitoring

A Solar SPD installation is not a “fit and forget” component. It is a sacrificial device; it degrades with each surge it diverts. Proper maintenance is essential for ongoing protection.

Visual Indicators: The vast majority of SPDs have a simple visual window with a colored indicator. Green means the device is functional. Red (or sometimes no light) means the protective components have been degraded and the unit must be replaced immediately. Part of any professional Solar SPD installation service is educating the client on how to read this indicator.
Regular Professional Inspection: As part of an annual solar system inspection, a certified technician should physically inspect the SPD. They will check for any signs of thermal damage, corrosion, or a tripped indicator. They can also perform a clamp meter test to check for leakage current.
Replacement Schedule: Even if no major surges have occurred, SPDs have a finite lifespan due to normal aging and small, undetected transients. It is a best practice to replace SPDs every 5-10 years, or as specified by the manufacturer. Planning for this replacement should be part of the long-term strategy following the initial Solar SPD installation.

Industrial vs. Residential: Tailoring the Solar SPD Installation

While the core principles are identical, the scale and complexity differ significantly.

Residential Solar SPD Installation:

Focus: Protecting a single inverter, typically a string inverter.
Typical Setup: A Type 2 SPD in the DC combiner box and a Type 2 SPD in the main AC panel.
Considerations: Aesthetics, ease of access for future replacement, and integration with existing home electrical systems.

Industrial Solar SPD Installation:

Focus: Protecting high-value central or string inverters, minimizing downtime, and ensuring compliance with stringent insurance and electrical codes.
Typical Setup: A multi-layered, coordinated protection scheme. This often includes:
- Type 1 SPDs at the main DC combiner stations for the entire solar field.
- Type 2 SPDs at the input of each central inverter.
- Type 2 SPDs on the AC output of the inverters at the medium-voltage transformer.
- Sophisticated SPDs with remote monitoring integrated into the facility’s Building Management System (BMS).
Considerations: Fault current calculations, coordination between SPDs to ensure the correct one activates first, and the use of heavy-duty, rack-mounted SPD modules designed for industrial environments. The planning for an industrial-grade Solar SPD installation is a complex engineering task in itself.

Conclusion: An Investment in Certainty

Your solar array is a long-term investment in a cleaner, more cost-effective energy future. To leave it vulnerable to the unpredictable nature of electrical surges is a gamble with exceptionally poor odds. A professional Solar SPD installation is the definitive solution.

It is a modest upfront cost that provides an immense return in security, system reliability, and pure peace of mind. It protects your warranty claims, satisfies insurance requirements, and, most importantly, ensures that your system will continue to generate power and savings for its entire intended lifespan.

Do not let a momentary surge undo years of benefits. The time for a proper Solar SPD installation is now.
