MS IEC 62305 Certified Commercial & Industrial
Lightning Protection System Malaysia
MS IEC 62305 is not simply a technical guideline for lightning protection specialists — it is Malaysia’s mandatory legal standard for protecting commercial buildings and industrial facilities from one of the country’s most frequent and destructive natural hazards. Yet the majority of Malaysian commercial and industrial facility managers have only a surface-level understanding of what a MS IEC 62305 Certified Commercial & Industrial Lightning Protection System actually requires — and what distinguishes genuine certification from a lightning rod bolted to a roof with no documentation. This guide covers everything: the four-part standard explained in plain terms, Lightning Protection Level classification, building compliance requirements, pricing, and how Suruhanjaya Tenaga Approved Industrial Lightning Protection Provider TAKO delivers certified, compliant systems for Malaysian industry and SMEs — with over 25 years of specialised experience.
What Is an MS IEC 62305 Certified Commercial & Industrial Lightning Protection System?
An MS IEC 62305 Certified Commercial & Industrial Lightning Protection System is a complete lightning protection installation — covering external air termination (lightning rods or ESE arresters), down conductors, equipotential bonding, earthing system, and internal surge protection devices — designed, installed, tested, and certified in full compliance with MS IEC 62305:2007, Malaysia’s national standard for Protection Against Lightning.
“MS” denotes Malaysia Standard — indicating that Malaysia has adopted the international IEC 62305 series as its national standard. “Certified” means the system has been professionally designed by a competent person, installed by a licensed contractor, tested to verified performance targets, and documented with formal certification records. A system without all of this — regardless of what hardware is physically present — is not MS IEC 62305 Certified.
Malaysia records 185 to 293 thunderstorm days per year across its major commercial and industrial zones — placing it among the top three most lightning-active countries in the world. For commercial buildings in Kuala Lumpur and Penang, and industrial facilities across Selangor, Johor, Pahang, and Sarawak, this frequency makes an MS IEC 62305 Certified Commercial & Industrial Lightning Protection System not a luxury, but a legal requirement and a fundamental safety necessity.
TAKO since 1979 — as a Certified Total Lightning Protection System Service Provider with over 25 years of specialised experience and Malaysia’s Sole Distributor of Telebahn Surge Protection Devices — delivers complete MS IEC 62305 Certified Commercial & Industrial Lightning Protection Systems across all major Malaysian industrial and commercial zones. We use our proprietary local risk assessment software tailored for Malaysia’s unique weather and soil conditions. The full range of TAKO lightning protection solutions is available for commercial and industrial facilities of all sizes.

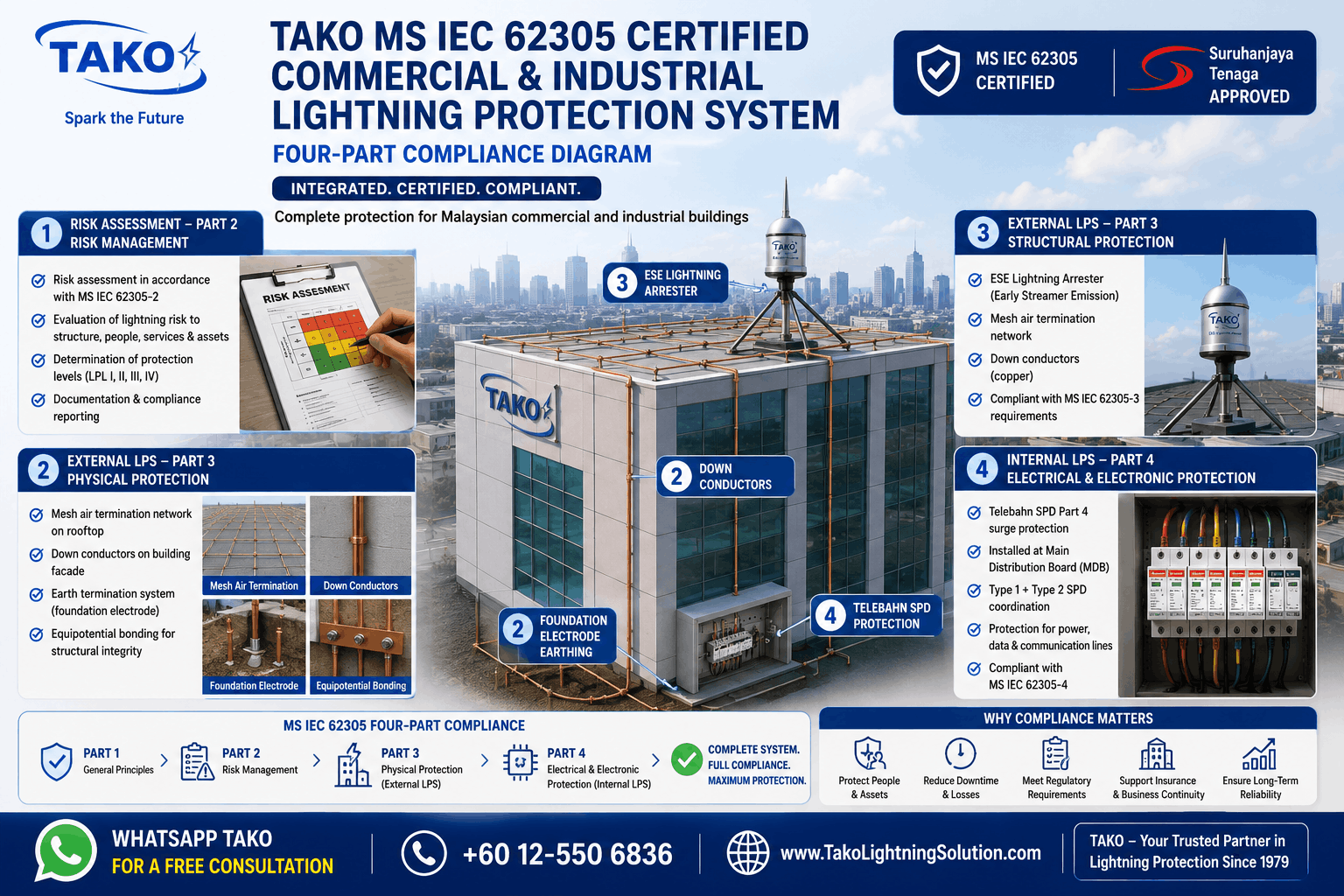

The Four Parts of MS IEC 62305 — What Each Requires
The MS IEC 62305 Certified Commercial & Industrial Lightning Protection System standard is structured across four inter-dependent parts. A system is only genuinely certified when all four parts have been addressed — and many commercial and industrial facilities in Malaysia fail compliance because Part 2 (risk assessment) or Part 4 (internal SPD protection) has been skipped entirely. See the definitive MS IEC 62305 standard guide for Malaysia for the complete framework.
⚠ Common Compliance Failure: The majority of non-compliant MS IEC 62305 Certified Commercial & Industrial Lightning Protection Systems in Malaysia fail on two points: (1) no formal risk assessment per Part 2 — meaning the system was never correctly specified to the required LPL — and (2) no SPD protection per Part 4 — meaning internal equipment remains unprotected from LEMP. TAKO’s certification process addresses both. Find out more at Is Lightning Protection Mandatory in Malaysia?
Lightning Protection Level (LPL) Classification — MS IEC 62305 Design Parameters
The Lightning Protection Level (LPL) — determined by the Part 2 risk assessment — sets the specific design parameters required for the external LPS of an MS IEC 62305 Certified Commercial & Industrial Lightning Protection System. Higher LPL classes (I being highest protection, IV being lowest) impose tighter requirements on rolling sphere radius, mesh dimensions, conductor spacing, and earth resistance targets.
| LPL Class | Protection Level | Rolling Sphere Radius | Mesh Dimension (Air Termination) | Down Conductor Spacing | Earth Resistance Target | Typical Malaysian Application |
|---|---|---|---|---|---|---|
| LPL I | Highest — 99% interception | 20 m | 5 m × 5 m | ≤ 10 m | < 10 Ω | Petrochemical plants (Pasir Gudang, Kertih), LNG facilities (Bintulu), explosive storage, hospitals |
| LPL II | High — 97% interception | 30 m | 10 m × 10 m | ≤ 15 m | < 10 Ω | Large commercial high-rises (KL, Penang), major factories (Shah Alam), power generation plants |
| LPL III | Moderate — 91% interception | 45 m | 15 m × 15 m | ≤ 20 m | < 10 Ω | Medium commercial buildings, SME industrial facilities, warehouses, logistics parks |
| LPL IV | Basic — 84% interception | 60 m | 20 m × 20 m | ≤ 25 m | < 10 Ω | Lower-risk structures with limited consequence of strike — rare for industrial applications |
| Source: MS IEC 62305-3:2007 Table 4. LPL class is determined by the Part 2 risk assessment — not by the contractor’s judgement or client preference. All LPLs require earth resistance below 10 Ω per MS IEC 62305-3. TAKO uses proprietary risk assessment software to determine the correct LPL for Malaysian facilities. Colour coding: red = highest protection requirement, green = lowest. | ||||||
TAKO’s Note: In Malaysia’s highest-lightning industrial zones — Bayan Lepas (Penang), Shah Alam, and Gebeng — even facilities that might qualify for LPL III under a basic risk assessment often come out at LPL II when the high local Ng value and consequence factors (process equipment value, fire risk, occupancy) are correctly applied. This is why a professionally conducted risk assessment — not a generic online calculation — is always the first step. See the complete earthing standard context at Understanding the Earthing System in Malaysia.
Get Your MS IEC 62305 Risk Assessment — The Mandatory First Step
TAKO conducts professional MS IEC 62305-2 lightning risk assessments for commercial and industrial facilities across Malaysia — using our proprietary local risk assessment software calibrated for Malaysian conditions. The site visit is free. The assessment is the legally required foundation of your certified LPS.
MS IEC 62305 Certified LPS — Commercial & Industrial Building Categories
Arahan/ST/No.4/2019 specifies the building categories for which a MS IEC 62305 Certified Commercial & Industrial Lightning Protection System is legally mandatory in Malaysia. The following table provides a practical reference for Malaysian facility managers — covering both the category of building and the specific MS IEC 62305 compliance requirements most relevant to each.
| Building Category | Malaysian Examples | ST Compliance | Typical LPL | Part 4 SPD Critical? | TAKO Service |
|---|---|---|---|---|---|
| Industrial Factories & Manufacturing | Automotive Shah Alam, electronics Penang FIZ, food processing Klang | ✓ Mandatory | II–III | ✓ Yes — PLCs, VFDs, SCADA | Complete MS IEC 62305 LPS + Telebahn SPD |
| Petrochemical & Chemical Plants | PETRONAS Kertih, Pasir Gudang, Gebeng Industrial Estate | ✓ Mandatory + CIMAH | I–II | ✓ Critical — explosion risk | ATEX-rated LPS, intrinsically safe SPD, full documentation |
| High-Rise Commercial Buildings | KL City towers, Penang commercial centres, JB Iskandar offices | ✓ Mandatory | II | ✓ Yes — BMS, lifts, IT | Mesh/rod system + foundation electrode + coordinated SPD |
| Warehouses & Logistics Parks | Port Klang logistics, Shah Alam 3PL, Subang cargo | ✓ Mandatory | III–IV | Recommended — WMS systems, CCTV | ESE or conventional rod + earthing + entry SPDs |
| Power Generation & Utilities | TNB power plants, independent power producers, gas stations | ✓ Mandatory | I–II | ✓ Critical — switchgear protection | Complete Total LPS + SCADA-level Telebahn SPD integration |
| SME Industrial Facilities | SME factories in Selangor, Johor, Perak, Kedah industrial zones | ✓ Mandatory | III | Recommended — production machinery protection | Right-sized LPS — transparent pricing, free assessment |
| Port & Marine Terminal Facilities | Port Klang, Johor Port, Penang Port, Bintulu Port | ✓ Mandatory | II | ✓ Yes — crane controls, port IT | Coastal-rated LPS + Thunderstorm Warning System + SPD |
| Data Centres & Telecom Infrastructure | MSC-status data centres KL, base stations nationwide | ✓ Mandatory | I–II | ✓ Critical — all lines protected | Full LPS + Type 1/2/3 power SPD + full data line Telebahn SPD |
| LPL classification is indicative — actual LPL for each building must be determined by a professional MS IEC 62305-2 risk assessment using site-specific Ng data, building dimensions, and consequence factors. TAKO conducts certified risk assessments for all building categories across Malaysia. Contact TAKO for a free site visit and assessment. | |||||
MS IEC 62305 Certified LPS — Indicative Pricing for Malaysian Commercial & Industrial Facilities
One of the most frequently asked questions TAKO receives from Malaysian commercial property managers and industrial facility engineers is: “How much does an MS IEC 62305 Certified Commercial & Industrial Lightning Protection System cost?” The honest answer is that it depends on the building — but the following table provides a transparent, practical reference for planning purposes.
| Facility Type & Size | LPL Class | Scope Included | Indicative Cost (RM) | Key Cost Drivers |
|---|---|---|---|---|
| SME Factory — up to 1,000 m² | LPL III–IV | Risk assessment, conventional rods, earthing, Type 2 SPD, certification | RM 8,000 – RM 22,000 | Soil type, number of earth rods, SPD specification |
| Medium Factory / Warehouse — 1,000–5,000 m² | LPL II–III | Risk assessment, ESE or rod network, full earthing, Type 1+2 SPD, commissioning | RM 25,000 – RM 70,000 | Roof area, ESE vs rod, soil enhancement required |
| Commercial High-Rise Building — 10–30 storeys | LPL II | Risk assessment, mesh/rod system, foundation electrode, full SPD coordination, certification | RM 45,000 – RM 150,000 | Building height, number of down conductors, SPD scope |
| Large Industrial Plant — 5,000–20,000 m² | LPL I–II | Risk assessment, multi-zone ESE system, distributed earthing network, comprehensive SPD, SCADA integration | RM 80,000 – RM 250,000 | Plant complexity, ATEX requirements, SPD points |
| Petrochemical / Critical Infrastructure | LPL I | Full MS IEC 62305 + ATEX-rated components, explosion-proof SPD, CIMAH documentation | RM 150,000 – RM 500,000+ | ATEX zone classification, process complexity, site size |
| Retrofit / Upgrade of Existing Non-Compliant LPS | Varies | Compliance gap assessment, targeted upgrade — rods, earthing, SPD addition as needed | RM 5,000 – RM 60,000 | Existing system condition, scope of gaps identified |
| Prices are indicative ranges for Malaysian commercial and industrial LPS installations as of 2025. All prices include MS IEC 62305-2 risk assessment, LPS design and installation, earth resistance testing, and full compliance documentation. Final pricing requires a free site visit and assessment. TAKO provides fully itemised quotations — no lump-sum figures. WhatsApp TAKO for your free assessment and quotation. | ||||
⚠ What the price does NOT include if you choose the wrong contractor: A significantly lower quote that excludes the MS IEC 62305-2 risk assessment, produces no as-built drawings, skips earth resistance testing, and provides no formal certification is not a cheaper version of the same product — it is a different product entirely. It is an uncertified installation that leaves your facility legally non-compliant, your insurance potentially invalid, and your equipment unprotected. The MS IEC 62305 Certified Commercial & Industrial Lightning Protection System price includes all of this — because TAKO will not deliver an incomplete system.
TAKO’s Six-Step MS IEC 62305 Certified LPS Process
Every MS IEC 62305 Certified Commercial & Industrial Lightning Protection System TAKO delivers follows the same documented six-step process — from the first site visit through to ongoing maintenance. This is what a genuine certified system looks like in practice.
Free Expert Site Visit & Compliance Gap Assessment
TAKO visits your commercial or industrial facility at no charge. We assess the current LPS (if any), review all documentation for compliance against Arahan/ST/No.4/2019, check earth resistance records, and identify the specific gaps in your current protection relative to MS IEC 62305 requirements.
MS IEC 62305-2 Lightning Risk Assessment
Professional risk assessment using TAKO’s proprietary local risk assessment software — incorporating your building’s specific location Ng value, dimensions, construction type, occupancy, contents, and consequence factors. This determines your required LPL class and provides the documented justification for the entire LPS design that follows. This document is required for Suruhanjaya Tenaga, DOSH, and insurance compliance.
Complete MS IEC 62305-3 External LPS Design
Formal LPS design drawings produced per the LPL determined in Part 2 — specifying air termination positions (ESE arrester or conventional rod layout), down conductor routing and dimensions, equipotential bonding schedule, and earth termination electrode configuration. All dimensions and materials referenced to MS IEC 62305-3 tables for the specified LPL.
MS IEC 62305-4 Internal Protection — Telebahn SPD Selection & Integration
As the Sole Distributor of Telebahn Surge Protection Devices in Malaysia, TAKO specifies and supplies the correct Telebahn BlitzShield® SPDs — Type 1, Type 2, Type 3 for power lines, BS LC 24 for signal and instrumentation lines, BS RJ45G 48 for Ethernet networks — all IEC 61643 Compliant and coordinated with your earthing system impedance.
Professional Installation Under Certified Engineers & PTW
All installation work is carried out by TAKO’s own certified engineers — never subcontracted. Work is performed under your facility’s Permit-to-Work system with all safety documentation. Conductor dimensions, electrode depths, and connection methods are verified against the design drawings throughout the installation.
Testing, Commissioning & MS IEC 62305 Certification Handover
Earth resistance measured and verified below the 10-Ohm target. SPD installation tested. Air termination and continuity confirmed. System commissioned. Full certification documentation package handed over — risk assessment report, as-built drawings, earth resistance test certificate, SPD records, commissioning certificate, and annual maintenance schedule.
MS IEC 62305 Certified LPS Across Malaysia’s Major Industrial & Commercial Zones
TAKO delivers MS IEC 62305 Certified Commercial & Industrial Lightning Protection Systems across every major commercial and industrial zone in Malaysia. For regional context beyond Peninsular Malaysia, see TAKO’s guide on Lightning Protection System in Johor Bahru, and our full Bahasa Malaysia service overview at Sistem Perlindungan Kilat.
Why Malaysian Commercial & Industrial Facilities Choose TAKO
TAKO has been delivering MS IEC 62305 Certified Commercial & Industrial Lightning Protection Systems across Malaysia since 1979 — with over 25 years of specialised expertise. Here is what distinguishes TAKO from contractors who install hardware but cannot deliver genuine certification.
- TAKO since 1979 — 45 years in Malaysia, 25+ years specialised MS IEC 62305 expertise: We were delivering lightning protection solutions before MS IEC 62305 was adopted as the Malaysian standard. Our experience with every iteration of Malaysia’s lightning protection regulatory framework means our certified systems stand up to the most rigorous Suruhanjaya Tenaga inspection
- Proprietary local risk assessment software for Malaysia: TAKO does not use generic international risk assessment tools. Our proprietary software is calibrated for Malaysia’s specific weather conditions — Ng values, storm duration, seasonal patterns — and building types. This produces risk assessments that reflect your facility’s actual exposure, not a global average
- Sole Distributor of Telebahn SPD in Malaysia — genuine Part 4 compliance: MS IEC 62305-4 (internal SPD protection) is the most commonly missing compliance element. As the Sole Distributor of Telebahn Surge Protection Devices, TAKO supplies authentic, IEC 61643 certified Telebahn BlitzShield® SPDs for every line type — completing the system that most contractors leave unfinished
- Complete four-part system — not just the external LPS: TAKO takes professional responsibility for all four parts of MS IEC 62305 in a single engagement. Risk assessment, external LPS, earthing, and SPD — all designed together, installed together, tested together, and certified together. One contractor. One compliant system
- Documentation that survives every audit: Suruhanjaya Tenaga inspection, DOSH OSHA 1994 audit, ISO 45001 certification, insurance review — TAKO’s certification documentation is structured to satisfy all of these. Our clients are never caught without the paperwork they need
- Annual maintenance — keeping certification current: Arahan/ST/No.4/2019 requires ongoing maintenance, not just a one-time installation. TAKO’s annual maintenance programme covers earth resistance re-testing, SPD functional checks, ESE ioniser testing, conductor inspection, and updated compliance records — maintaining your MS IEC 62305 certified status year after year
Find TAKO’s complete solutions and project portfolio at takolightningsystem.com and see our Google Business Profile at Google Maps to read what our commercial and industrial clients say about TAKO’s certified work.
Get Your MS IEC 62305 Certified Commercial & Industrial LPS — TAKO Since 1979
TAKO delivers complete, certified, Suruhanjaya Tenaga Approved lightning protection systems for commercial buildings and industrial facilities across Malaysia. Free site visit. Proprietary risk assessment software. Telebahn SPD. Full certification documentation. 25+ years proven expertise. No obligation.
MS IEC 62305 Certified Commercial & Industrial LPS — FAQ
What is an MS IEC 62305 Certified Commercial & Industrial Lightning Protection System?
Is an MS IEC 62305 Certified Lightning Protection System mandatory for commercial buildings in Malaysia?
What Lightning Protection Level (LPL) does my commercial or industrial facility require?
How much does an MS IEC 62305 Certified Commercial Lightning Protection System cost in Malaysia?
Why choose TAKO for MS IEC 62305 Certified Commercial & Industrial Lightning Protection in Malaysia?
